Through Conduct Knife Gate Valve

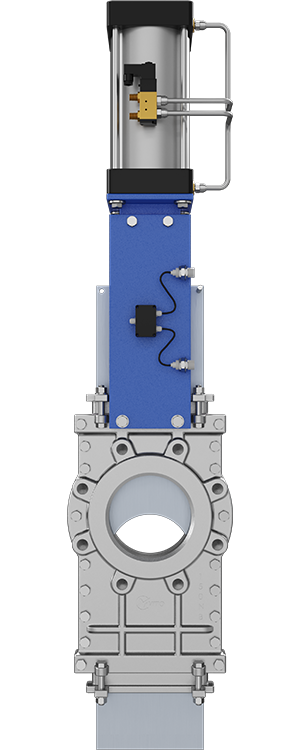

Model - MI - MLG

The MI-MLG Model Knife Edge Gate is Bi-Direction Wafer Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries Such As:

• Pulp And Paper
• Power Plants
• Bulk Handling
• Wastewater Treatment Plants
• Chemical Plants
• etc.

Sizes:DN 50/2" to DN 500/20" (larger diameters on request)

Working Pressure:

DN 2"/ 50mm to DN 10" / 250 mm - 150 psi / 10 bar

DN 12"/ 300mm to DN 16" / 400 mm - 90 psi / 6 bar

DN 18"/ 450mm - 75 psi / 5 bar

DN 20"/ 500mm - 60 psi / 4 bar

Standard flange connection:

DIN PN 10 and ANSI B16.5 (class 150) and Table "E" & "D"

Other Flanges Connections Available on Request

DIN PN6 / DIN PN16 / DIN PN25/ ANSI125
