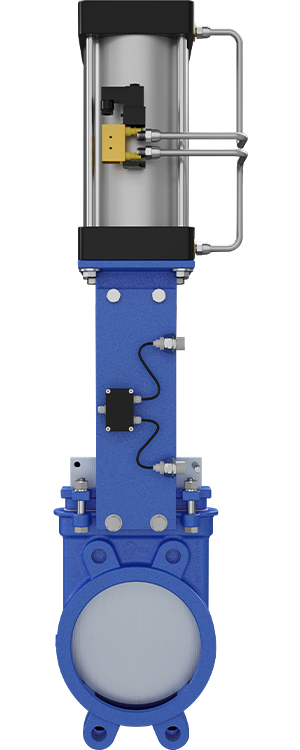

Knife Edge Gate Valve
(Model- MI - MDP)
The MI-MDP Model Pneumatic Knife Gate Valves is An UNI & BI-Directional
Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design of The Body And Seat Assures Non-Clogging Shut Of On Suspended Solids in Industries Such As:
- Pulp And Paper
- Food And Beverage
- Wastewater Treatment Plants
- Bulk Handling
- Chemical plants
- Mining
- Etc.
Sizes: DN 50/2" to DN 350/14" (larger diameters on request)
Working Pressure:
DN 50 to DN 350: 10 kg/cm2 / 150 psi
Standard flange connection:
DIN PN 10 and ANSI B16.5 (class 150) and Table E Other Flanges Connections Available on Request
| PART | MATERIAL OF CONSTRUCTION: |
|---|---|
| 1 - BODY | DUCTILE IRON / CAST IRON |
| 2 - GATE | AISI 304 / AISI 316 |
| 3 - SEAT | METAL TO METAL/SOFT SEAT |
| 4 - PACKING | PTFE IMPREG. SYNTH. FIBRE |
| 5 - GLAND FOLLOWER | CF,8,CF8M, WCB |
| 6- SOLINOID VALVE | 110VAC, 230VAC, 24VDC |
| 7- LIMIT SWITCH | MECHANICAL, PROXIMITY SENSOR |
| 8 - YOKE | MILD STEEL |
| 9 - SEAT RING | AISI 304 / AISI 316, Integral As Body Cast |
| 10- PNEUMATIC | PNEUMATIC OPERATED |
| 11- FASTNERS | HIGH-TENSILE |
| 12-CYLINDER TYPE | DOUBLE ACTING |
| 13-CYLINDER BARRAL | ALUMINUM |
